Wide range of supported materials
Impurities
Foreign Material
Color
Angle Hairs
Shape
UniscanSORTER
Bulk Material Sorting

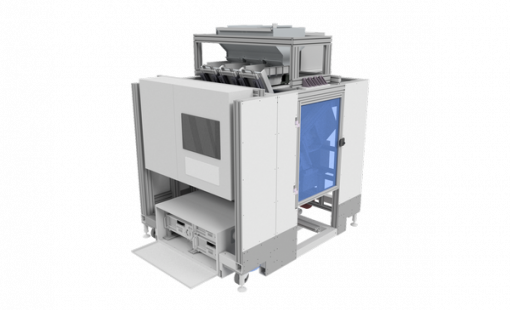

The UniscanSORTER is an advanced optical sorting system designed for the precise detection and separation of defective pellets during the production of plastic granulates and compounds. The infeed section is equipped with hoppers and vibratory feeders to ensure a steady material flow. As the material travels down the chute, it is aligned into a single layer and directed into the inspection zone. Here, the pellets are illuminated by dynamically controlled lighting and continuously scanned by high-speed line-scan cameras. In the final step, any non-conforming or unwanted pellets are instantly ejected from the main stream by a precise array of air jets.
System Features
- High-Precision Detection: Detects defects as small as 0.01 mm².
- Customizable Camera Setups: Camera types can be tailored to the specific defects being inspected.
- Configurable Illumination: Adjustable lighting profiles.
- Dual-Sided Inspection: Comprehensive scanning from both sides.
- Advanced Sorting Logic: Separation based on color deviations or shape analysis.
- Intuitive Configuration: Easy setup and adjustment of sorting criteria.
- Modular Scalability: Easily expandable thanks to a flexible, modular system design.
- High Throughput: Capacity of approximately 700 kg/h per lane.
- Seamless Integration: Direct communication with production line control systems.
- Comprehensive Reporting: Exportable statistics and inspection results.
- Image Data Archiving: Secure backup of inspection image data for later review.
- Precise Air-Jet Ejection: Fast and reliable separation using pneumatic air jets.
- Mobile Design: Flexible and easily relocatable within the production facility.
- 24/7 Technical Support: Rapid troubleshooting and round-the-clock service support.
Solution Overview
One System ● Your End-to-End Measurement Solution ● Hardware and Software in Perfect Synergy
System Integration
The system can be fully integrated into automated manufacturing processes, enabling automatic pellets loading and unloading as well as seamless communication with other systems.
System Advantages
- Defective pellet separation for minimized Quality Incidents (QI).
- Cross-contamination and impurity control for raw materials and damaged packaging.
- Foreign object and material separation within the production flow.
- Early detection of production defects and non-conformities.
